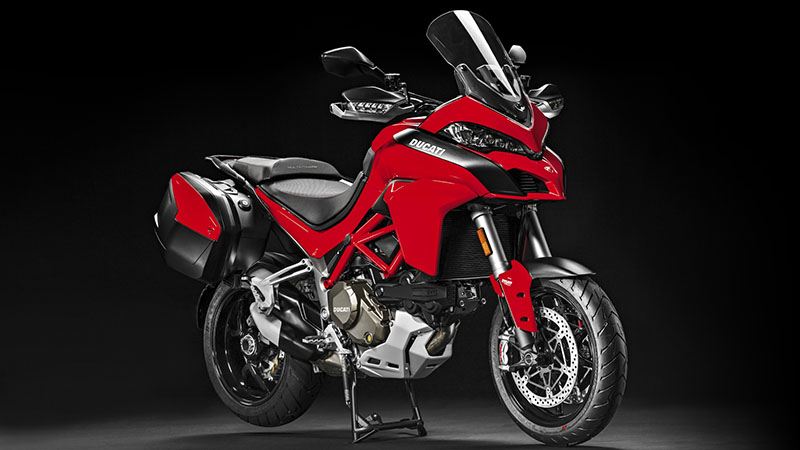

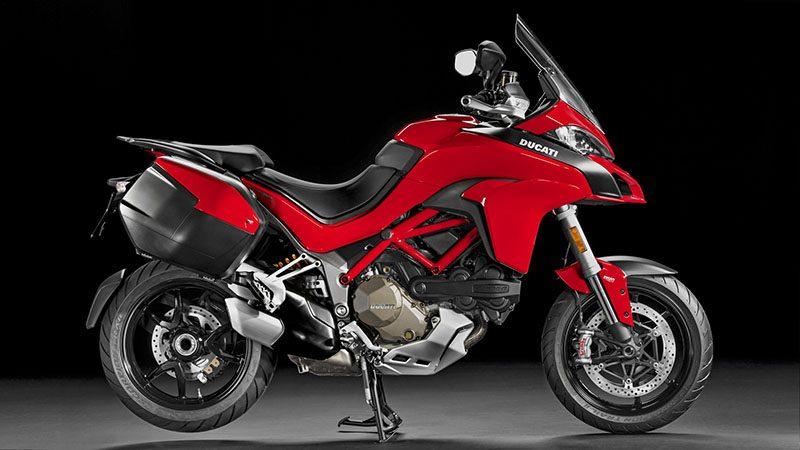

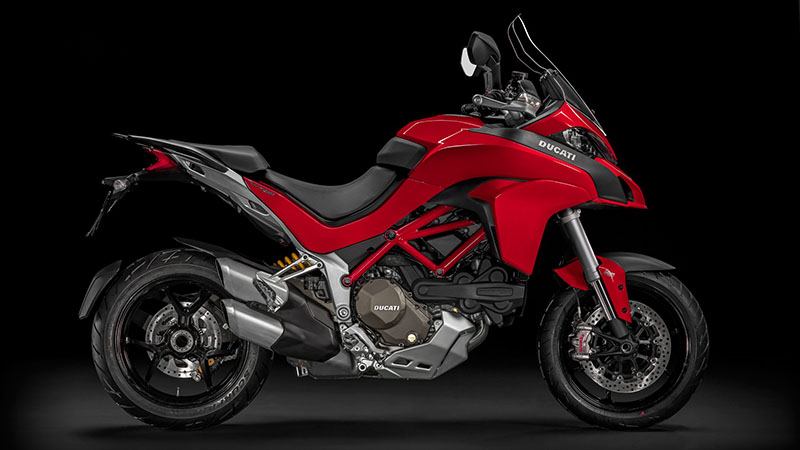

2017 Ducati Multistrada 1200 S for Sale

Chassis

• SUPERBIKE SPEC BREMBO BRAKING SYSTEM: The Multistrada 1200 S features a Superbike spec Brembo braking system composed by racing oriented PR 16 brake pump managing two Ø 330 mm front discs coupled with Superbike-spec Brembo Monobloc M50 calipers. The rear performs with an huge single Æ 265 mm disc gripped by a single 2 x 28 floating Brembo caliper with sintered pads. The performance of the brake system are supported by the 2 channels Bosh 9ME multi-calibrations ABS with cornering functionality that provides optimum braking even in bends.

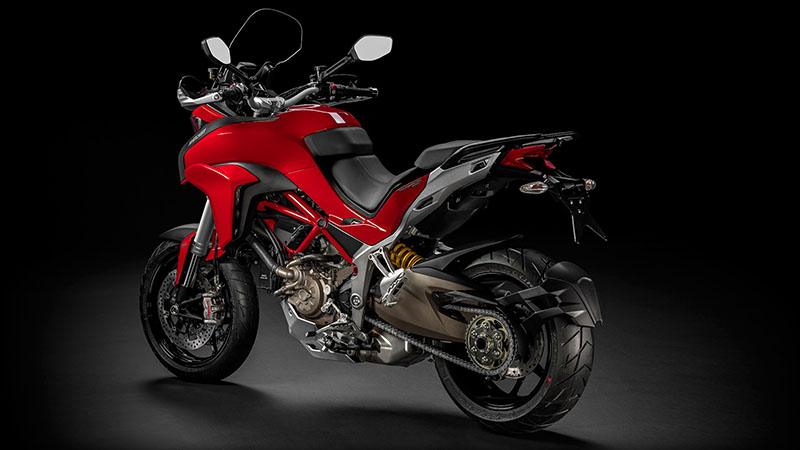

• SINGLE-SIDED SWING ARM: The Multistrada 1200 is equipped with a single-sided cast Aluminum swing-arm that ensures high rigidity, low weight, excellent stability, it provides technical and professional look and contributes to deliver superior on-road performance.
• OVERVIEW: The chassis is designed to deliver high overall performance in a wide range of riding situations: the 1.529 mm of wheelbase ensures great abitability and keep the weight of the passenger and side paniers inside the wheelbase length, a considerable contribution to the motorcycle’s dynamic performance; a maximum lean angles of 47° to have fun on back roads; 180 mm of ground clearance makes the bike enjoyable in off-road; the total steering lock angle of 80° combined with a low weight and a perfect weight-balancing (50% front, 50% rear) makes tight maneuvers at low speeds, typical of urban environment, easy to manage. The fuel tank has a capacity of 20 Litres. Subject to riding style, the 20 Litres can provide more than 400 km of motorcycle pleasure between fuel stops, measured on homologation riding cycle.

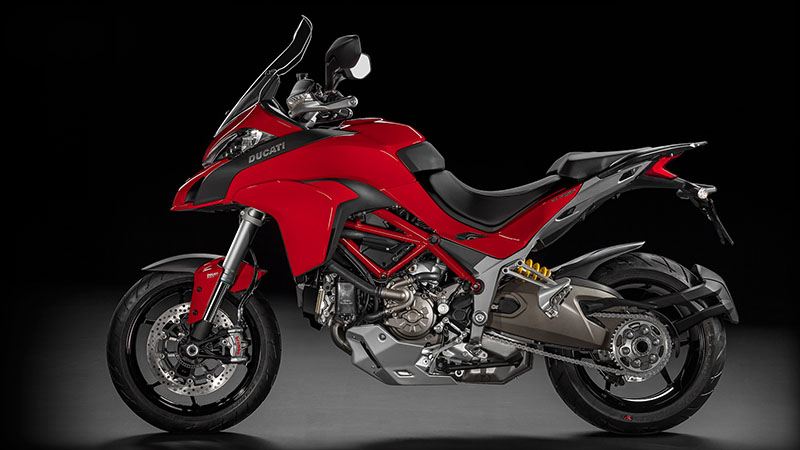

• TRELLIS FRAME: The Multistrada 1200 features a Ducati signature Trellis frame with large diameter, light gauge tubing with two central cast Aluminum sections and a sophisticated rear casted sub-frame. At the front an high pressure, die cast, magnesium front sub-frame reduces the high, frontal weight and contributes to chassis feel and control.
• DUCATI SKYHOOK SUSPENSION (DSS) EVO: The Multistrada 1200 S is equipped with Æ 48 mm front fork and Sachs rear monoshock, both integrated with the latest evolution of the Ducati Skyhook Suspension (DSS) system. This system is characterised by semi-active suspension control, that automatically and continually adjusts damping to maintain a steady attitude regardless of road conditions, reduce the amount of vibration transferred to rider and passenger, and significantly improves riding comfort and stability. The name "Skyhook" describes the feel of the bike, which seems to be hooked up to the sky and immune to bumpy terrain. The DSS system processes the inputs from a number of sensors (vertical accelerometers and spring travel sensor) located on sprung and unsprung components instantly and adjusts compression and rebound damping according to selected Riding Mode so as to minimise the vertical motion caused by the road and maximise riding comfort and stability. In addition the 2015 DSS system uses pitch angles information provided by the Inertial Measurement Unit (IMU) to adjust damping continually to minimise load transfers during transition from braking to acceleration and deceleration, with great benefits in terms of dynamic performance. Rear suspension spring preload adjustment is integrated with the Riding Modes. The system enables the rider to select the different Riding Modes (Sport, Touring, Urban and Enduro), and to change setup conveniently and quickly to suit load conditions and type of trip: riding solo, rider and luggage, riding two-up or two-up with luggage. The DSS recognises customised settings and re-tunes accordingly before starting interaction.
• ADJUSTABLE SEAT: The Multistrada 1200 seat provides an instant feeling of comfort and stirs up your desire to ride. Two independent seats for rider and passenger, designed with great attention to shape and foam density ensure excellent comfort also on long trips and excellent ground reach.The rider's seat is adjustable by ± 20 mm so that the standard seat height can be easily adjusted from the lower 825 mm position to 845 mm. The passenger grab handle is ideally positioned with respect to seat top to provide ample grip space, good grip and an ergonomic position.
• ERGONOMICS: The Multistrada 1200 underwent an extensive ergonomic study to ensure superior comfort for rider and passenger. Rider and passenger triangles have been designed to offer the most comfort and fit. There is ample space for riding two up with top case and side panniers installed. The screen features 60 mm of vertical adjustment with an one-hand manually operated system to ensure a further more efficient wind protection for all rider heights and effortless high-speed riding over long distances. The wide handlebars have been designed for maximum comfort and ensure a commanding riding position. A confidence-inspiring passenger grab-handle offers a secure and comfortable grip. To further enhance its "multi-purpose" vocation, the Multistrada 1200's ergonomics were designed and tested to make it easy to ride standing up, a significant benefit when riding on bumpy terrain.
• PIRELLI SCORPION TRAIL II TIRES: As the first generation the Pirelli Scorpion Trail II is purposely designed for on/off road use to deliver sport performance on the road in terms of grip and lean angles, while ensuring high mileage for touring and good off-road performance. The new tire offers: Greater grip on the edges with light and precise handling; Improved carcass structures for enhanced straight line stability at high speed; Increased maximum mileage on the street; Greater traction on light off-road surfaces thanks to the new central tread pattern and compound.
• Y-PATTERN 3-SPOKE WHEEL RIMS: The sporty attitude of the Monster 1200 is emphasized by its Y-pattern 3-spoke sport rim design in light alloy. The 3.5x17 front wheel and 6x17 rear wheel are fitted, respectively, with 120/70 R and 190/55 R Pirelli Scorpion Trail II tyres.

Engine

• DUCATI TESTASTRETTA DVT: The Multistrada 1200 is powered by the brand-new revolutionary Ducati Testastretta DVT engine which adopts a Desmodromic continuous variable valve timing to optimize power and torque across a wider rpm band delivering an unprecedented combination of breath-taking-torque (136 Nm@7.600 rpm), class-leading power (160 Hp* @9.500 rpm) , super-smoothness and low fuel consumption; the Desmodromic Variable Timing (DVT) is a double and continuous system applied for the first time to a motorcycle engine managing both exhaust and intake camshafts. On a conventional engine both the exhaust and intake valves’ open or closed position depends on their fixed position relative to the timing-belt that’s driven by the crankshaft. The timing cannot be altered, so there’s no way to increase or decrease the amount of valve overlap when both valves are open at the same time. As a consequence the time that the valves open and close is really optimized for only one engine speed-range away from those rpm, fixed camshaft timing is the best compromise. The aim of the Multistrada 1200's engine was to increase power at high engine speeds and also increase torque at low rpm, the only way to achieve this goal was to use a variable valve timing system. The DVT system, has the task of setting the most advantageous valve timing according to engine load and speed requirements; it allows to continuously advance or retard both exhaust and inlet valve timing by rotating the camshafts to operate efficiently at a wider range of speeds by delivering high performance at high speeds, with a flatter torque curve at low speeds. The engine configuration is completed with the secondary-air-system, the dual-sparks injection system where the two plugs are managed independently and the anti-knocking sensor. The combustion process is optimized with high compression pistons (12.5:1). *The power values indicated above are measured using a chassis dynamometer. Homologated power data, as quoted in the Bike Registration Document, are measured using an engine dynamometer according to the homologation regulation. The two power values may differ because of the different measurement equipments.
• DESMODROMIC VARIABLE TIMING (DVT): The Desmodromic Variable Timing (DVT) uses hydraulically operated camshaft-phasers (two for each heads) to manipulate camshaft position relative to the sprocket connected to the timing belt and therefore vary valve timing. They are on both the intake and exhaust camshaft. The camshaft-phaser is a two-piece mechanism comprised an outer sprocket (2) connected to the timing belt and an inner rotor (3) connected to the camshaft that varies the valve timing by adjusting the rotation angle of the camshaft. The two pieces can move about 45° crankshaft degrees independently of each other in 0,45 sec. This inner rotor consists of a set of lobes, ports inside the phaser direct oil in or out of the space between (chambers) the outer housing and the lobes. Oil seals fit into machined grooves of the rotor to provide a tight seal between the chambers. The chambers are grouped into two sides. Left alone the outer sprocket will simply spin at the same rate as the inner rotor. As one group of chambers receives pressurized oil (system adds oil to one side of the lobe), and the others are vented it provides the force necessary to move or hold the rotor relative to the phaser body. The camshaft-phasers of each head are connected to the engine oil system via two solenoid valves (4) attached to the cylinder heads. They direct oil pressure to both the camshaft-phasers according to the signal from the engine control unit. The oil pressure acting in the cam phasers is continually adjusted by the oil control valves in order to set the right position of each camshaft The position of the camshaft is dynamically controlled by a specific sensor mounted on the head covers. The engine control unit according to engine-information (engine speed, engine load and temperature and the positions of the crankshaft and camshafts) actuates the solenoid valves. They open oil galleries in the control housing. Engine oil flows through the control housing into the camshaft-phasers. The camshaft-phasers turn and adjust the camshaft timing according to the specifications of the engine control unit.
• EXHAUST SYSTEM: Both main manifolds end up straight into the single 3-chamber silencer, which acts as a 2-1-2 collector box and accommodates cat converter and sound-deadening material. The two compact, light aluminium alloy tail pipes exit the silencer and are positioned low to the side to keep noise and heat away from the passenger.
• ANTI-KNOCKING SENSOR: The Ducati Testastretta DVT features an integrated anti-knocking sensor; while optimized for high octane fuel (RON 95), thanks to an anti-knocking sensor the motor can also operate - without manual intervention - on lower octane normal fuel (RON 91) as are sometimes found in distant countries.
• LONG SERVICE INTERVALS: Careful engineering and top-quality materials achieved amazing results: the valve clearances are checked every 30,000 km, and the service intervals are every 15.000 Km.
• INDEPENDENT DUAL-SPARK CONFIGURATION: The Ducati Testastretta DVT is equipped with two sparks whose ignition is managed independently: (1) one is placed at the center of the combustion chamber, the additional one (2) on the external side. The benefit is to provide at any engine speeds a further more effective twin flame-front that ensures complete and efficient burning (quicker and more complete) of the fuel-air mixture within the combustion chamber across a shorter period of time. At low engine speeds the two plugs work simultaneously, while at high engine speeds the two plugs are managed independently with a dedicated ignition timing.

Equipment

• FULL-TFT INSTRUMENT PANEL: The Multistrada 1200 S is equipped with a state of the art full-TFT instrument panel. The display's configuration is variable and automatically adapts to variations in environmental light, also changing according to the selected Riding Mode or fully selectable by the rider. There are four configurations, different in background style, information displayed, and display layout: the visualizations are different for rev-counter style, information displayed and display lay-out. Sport and Touring are the most complete for information displayed; in Sport the rpm bar graph has the same style as those of the Panigales; in Urban only the most essential riding information are displayed, Enduro view adds rpm bar graph.
• BOSCH 9ME MULTI-CALIBRATION CORNERING ABS: The Multistrada 1200 comes standard with the Ducati Safety Pack (DSP) that combines the Bosh 9ME multi-calibration cornering ABS with the Ducati branded 8-levels DTC. The sophisticated 9ME multi-calibration cornering ABS improves active safety during braking situations while riding straight as well as while cornering without sacrificing dynamic performance or riding fun. The 9ME cornering ABS provides in braking phase top performance and state of the art active safety level with the following customer benefits: ensures optimum distribution of brake force at all times preventing front and rear wheels from locking prevents the rear wheel from lifting uncontrollably when braking reduces the risk of "lowsiders" by limiting the maximum brake force. It distributes the maximum available brake force between the wheels, ensuring the best possible brake performance under cornering conditions when braking heavily in curves the ABS, reduces the motorcycle's tendency to return to an upright position leaving the desired lane. The combined brake system function creates the best possible distribution of brake force between the wheels, and thus stabilizes the bike during cornering possibility to switch from a calibration configuration to another by selecting the appropriate Riding Mode Of course ABS can be deactivated if rider wishes. ABS-Off can be loaded as a configuration of a riding mode and is maintained switching after key-off.
• FULL-LED HEADLIGHTS: The Multistrada 1200 S features the latest lighting technologies; the headlights use LED technology for position, low and high beams while at the rear a 3D light guide for position light and LED lights for stop light. Full-LED front indicators integrated in the hand guards and traditional lamps indicators at the rear complete the lighting system.
• MULTISTRADA LINK: With Ducati Multistrada Link, the new app for the IOS operating system (soon to be available for Android too), each journey becomes an even more engaging, ultra-connected ride riding experience. Thanks to the standard Bluetooth technology on the Multistrada 1200 Enduro, the Multistrada Link app lets users record numerous parameters on their smartphones before, during and after a ride. Speed, lean angle, power, fuel consumption and much more besides can be saved and consulted at any time thanks to the travel diary, letting riders re-live the route in the form of maps, descriptions and photos so that not a single memory is lost. The Multistrada Link also lets users check maximum values for several parameters and pinpoint where they occurred on the route; at the end of a journey it's also possible to display how much, in terms of percentages, the different Riding Modes were used. Lastly, the Multistrada Link keeps track of the achievement of personal goals related to use of the App and the rider's Multistrada by awarding badges and updating performance data.

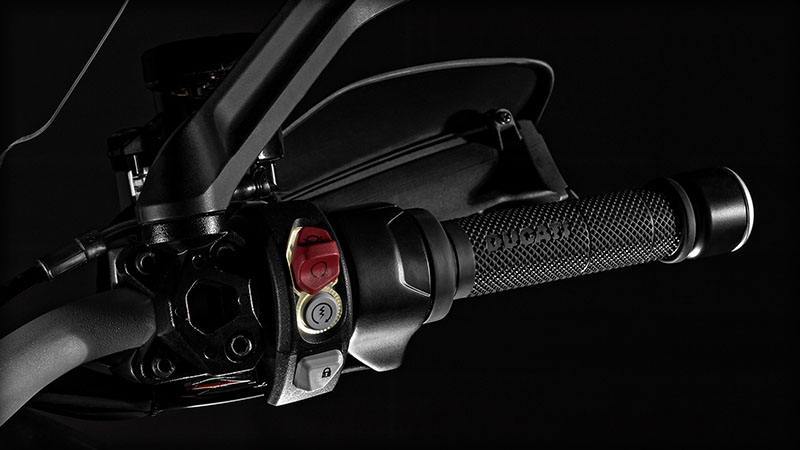

• PREMIUM HANDLEBAR SWITCHES: The handlebar switches are easy to operate thanks to generous dimension and extreme intuitive with one single operation for button. High quality look and feel is combined with backlight for the main functions to easily locate buttons even during night time riding.
• INTERNAL PLATFORM: The Multistrada 1200 is equipped with the latest evolution of Inertial Measurement Unit (IMU) by Bosh that provides the information used to deliver a significantly greater level of safety and riding control, of course without sacrificing riding pleasure and performance. The sensor measures the 5D inertial signals, roll rate (ΩX), yaw rate (ΩZ), longitudinal acceleration (aX), transverse acceleration (aY) and vertical acceleration (aZ) of the motorcycle; an algorithm uses these values, provided via CAN, (and other data such as wheel speeds and other motorcycle-specific parameters) to determine the lean and pitch angles. The lean and pitch angles are provided by the IMU to 9ME cornering ABS, Ducati Wheelie Control (DWC), Ducati Skyhook Suspension (DSS), and Ducati Cornering Lights (DCL).
• DUCATI TRACTION CONTROL: An integral part of the Ducati Safety Pack (DSP), the Ducati Traction Control system can be adjusted to eight levels (four of which are integrated in the Riding Modes). It processes the inputs from the wheel speed sensors to control rear wheel slip, significantly improving performance and active safety. The system installed on the Multistrada 1200 offers a very smooth intervention of the system, which gives priority to ignition delay. In case of wheel-spin, the system reacts by delaying the ignition, up to a 60% torque reduction request. For higher torque reduction requests the injection is cut off. Each pre-set DTC level associated with the different Riding Modes can be customised by the rider and stored from the setup menu.
• CRUISE CONTROL: The Multistrada 1200 comes standard with an electronic cruise control function making lengthy motorway rides more relaxed and comfortable. The function is activated by pressing a dedicated easy-to-access button at the left-hand end of the handlebars, via the same button is possible to increase or reduce the currently selected road speed. Here the two throttle valves are activated by the engine control and independently of the accelerator twist grip. When the front or rear brake or the clutch are activated or the throttle grip is turned in the opposite direction cruise control is switched off. The "Resume" function allows the rider to re-activate the originally selected speed, which the vehicle then automatically restores.
• DUCATI MULTIMEDIA SYSTEM (DMS): The Multistrada 1200 S is equipped as standard with the Ducati Multimedia System (DMS) that thanks to Bluetooth technology allows to accept an incoming phone call, to select and listen to the favorite songs and be alerted for a new SMS. When you get on the bike the smart-phone automatically connects via Bluetooth with the bike; connection allows to manage the controls of the main multimedia functions while the TFT display the listening track, the new SMS icon or the name of the incoming caller; audio call and music are transmitted to earphones of driver and passenger. Moreover the DMS via the Multistrada Link smartphones application (available for Android and IOS), provides a number of functionality designed to enrich and share the riding experience.
• HANDS-FREE IGNITION: The Multistrada 1200 is actuated without a mechanical key. As the rider approaches the bike with the electronic key in his pocket, the system will recognise the key code within a 2-metre range and enable actuation. At this point, a simple press of the key-on button will switch on the panel, and then the rider can start the engine. The steering lock is electrically actuated. When parking the bike, it can be actuated by pressing the key-on button. The steering lock is released automatically at the next key-on.
• DUCATI SAFETY PACK (DSP): The Ducati Safety Pack (DSP) is offered standard throughout the Multistrada 1200 range, giving evidence of how Ducati gives top priority to road safety. Designed to achieve superior control and active safety, the DSP includes Brembo's state-of-the-art 9ME multi-calibration cornering ABS with three mappings and 8-levels Ducati Traction Control (DTC).
• DUCATI CORNERING LIGHTS (DCL): The Inertial Measurement Unit (IMU) constantly supplies lean angle data to the Ducati Cornering Lights (DCL) that equip the Multistrada 1200 S to provide a greater active safety at night or whenever visibility is poor. When entering a bend, the dedicated LED located in the headlights turn on in the direction of the road, according to a defined lean angle, allowing to see around the corner instead of having to ride into darkness. When the lean angle sensor detects the bike is bending the LED are turned on and the illumination is directed into the bend to balance the angle of lean and as consequence to become any obstacles visible sooner.
• RIDING MODE: The new Multistrada 1200 incorporates the very latest innovative Ducati technologies, including the famous Ducati branded Riding Modes. The four Riding Modes (URBAN, TOURING, SPORT, ENDURO) are enabled by combining class-leading technologies such as: Ride-by-Wire (RbW), Ducati Traction Control (DTC), multi-calibration 9ME cornering ABS, Ducati Skyhook Suspension (DSS) Evo, Ducati Wheelie Control (DWC) and the graphics on the instrument panel. The rider can change the character of the bike by selecting from the left-hand switchgear - even while riding - among four different pre-set configurations (Riding Modes) that best adapt to the riding style or riding conditions. The Riding Modes make it possible to instantly modify the power delivered by the engine (RbW), the activation levels of DTC, ABS, DWC, the damping damping set-up of DSS Evo and the graphics on the instrument panel. The Riding Modes are factory pre-set in each of the three parameters, but can be individually customised and saved to suit the rider. A "default"option is available to easily return all settings to factory pre-sets.
• DUCATI WHEELIE CONTROL: The Ducati Wheelie Control (DWC) algorithm is computed by the BBS (BlackBoxSystem unit) and it uses wheels speed, roll and pitch angle (provided by Bosch IMU), longitudinal acceleration signals The DWC control algorithm uses those signals to determine the status of the bike and the magnitude of the wheelie as a consequence of that the system allows maximum acceleration in a safe manner Based on these information the DWC control unit computes a power/torque request which is sent on CAN to the ECU (Engine Control Unit). The ECU interprets the data communicated by the DWC control unit to reduce the power/torque level required by the rider. The power/torque reduction is shown by the DTC light on the dashboard. Depending on the DWC level, ranging from 1 to 8, there are different reductions of engine power/torque compared with the same motorcycle dynamic conditions. In particular the power reduction is lower with level 1 and higher with level 8.

Personalization

• PERSONALIZED FOR YOU: The Multistrada enhances the riding experience with customisation packages designed to highlight the bike's different souls. Sport, Touring, Urban, Enduro. Four kits, which can also be combined, to give the Multistrada the perfect personality for you. In addition, a wide range of accessories (to purchase separately) for made-to-measure kit. See Dealer for Pricing.
• TOURING PACK: The destination does not matter. What's important is to travel. The Granturismo soul of the Multistrada is provided for in the Touring package solutions. Side bags with a total capacity of 58 lt and a heated handlebar make the ride more comfortable, while the centre stand supports the bike when it's time for a break or to enjoy the view. The package comprises a set of side panniers, with a total capacity of 58 lt, a heated handlebar, adjustable on 3 levels, and a centre stand. See Dealer for Pricing.
• SPORT PACK: Bursts of acceleration. Corners taken at speed. With the Sport package, the rider's sporty side is accentuated by the unmistakable sound of the Termignoni exhaust and the racing look of the carbon front mudguard. The elegant aluminium covers for the brake and clutch fluid tanks complete a kit dedicated to those seeking maximum performance on the road. The package comprises an homologated Termignoni silencer in carbon (in line with EU homologation standards), carbon front mudguard and brake and clutch fluid tank covers in forged aluminium. See Dealer for Pricing.
• URBAN PACK: Practicality is essential when riding in the city. The Urban package ensures sufficient space for all that you need to carry from home to work with its 48 lt top case. The convenient pocket tank bag means that you can keep your smartphone handy and charge it thanks to the practical USB port. For an increasingly smart riding experience. The package comprises a 48 lt top case, a semi-rigid tank bag that is quick to attach/detach, and USB port. See Dealer for Pricing.
• ENDURO PACK: It doesn't matter if the tarmac ends. Riding a dirt track becomes even more enjoyable thanks to the Enduro package. Touratech protectors for the engine, radiator and undertray protect the bike, while off-road foot pegs guarantee maximum riding control. LED lights improve safety and enhance the off-road character of the bike. The Enduro package is completed with the useful enlarged side stand base. The kit contains: extra lights, engine guard in steel tubing, radiator protection grille, extension plate for the stand, off-road footpeg set. See Dealer for Pricing.
